How to Choose the Right Stäubli MC4 Connector Model?

Choosing the right Stäubli MC4 connector is crucial for ensuring the efficiency, safety, and durability of a solar power system. With different models available, each designed for specific applications, it's important to understand their features and performance to make the best choice.

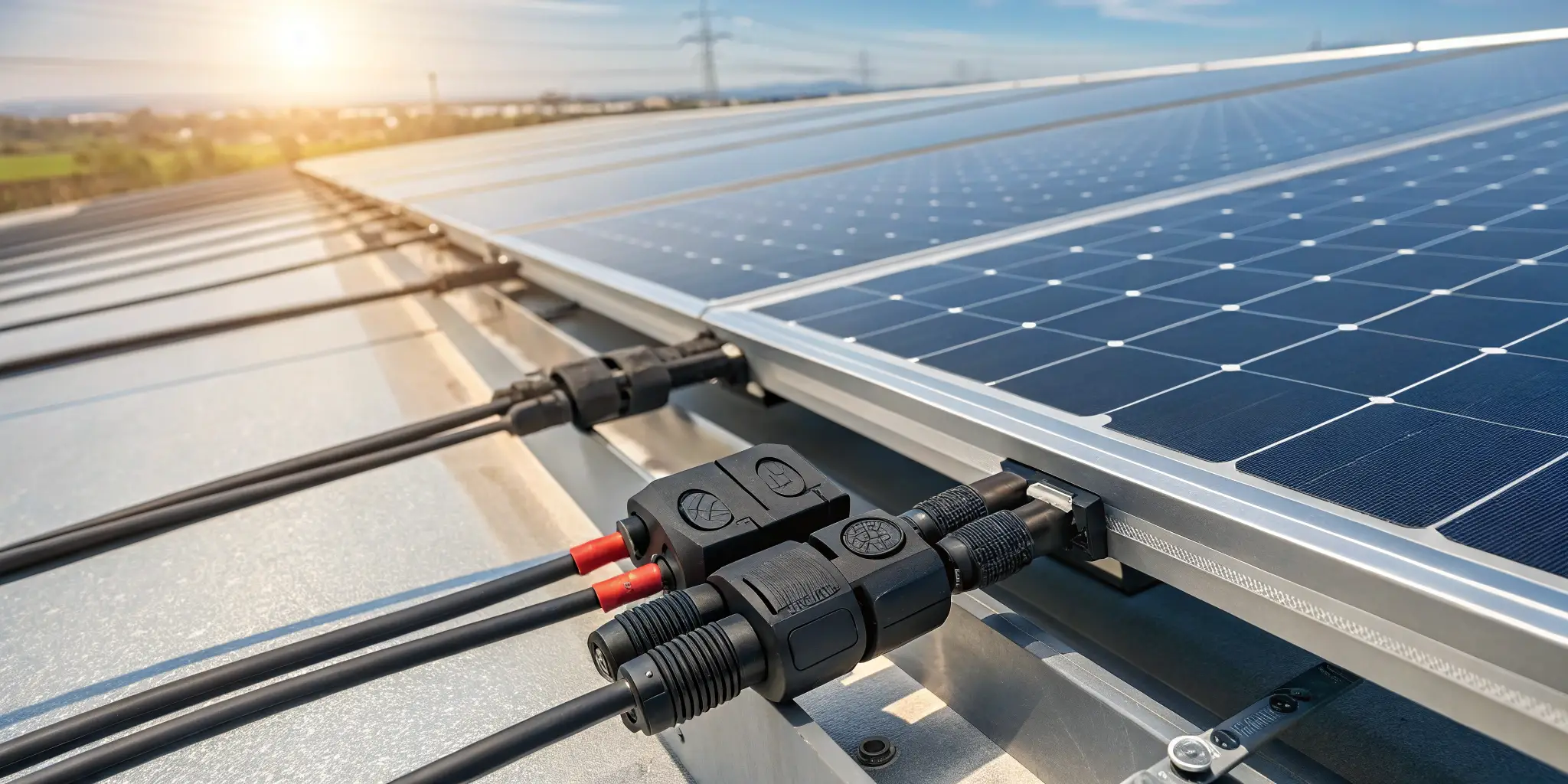

MC4 connectors are widely used in solar installations because they provide reliable, weatherproof, and secure electrical connections. Stäubli, the original manufacturer of MC4 connectors, offers a range of models optimized for different voltage and current requirements.

To help you decide, let's explore the factors that influence connector selection and compare the key MC4 models.

What Factors Should Be Considered When Selecting a Stäubli MC4 Connector?

Solar systems vary in size, voltage, and installation conditions, so it's essential to select an MC4 connector¹ that meets the specific needs of your project.

The main factors to consider when choosing a Stäubli MC4 connector include:

• Voltage Rating² – Ensure compatibility with your solar system's voltage (1000V or 1500V).
• Current Rating – The connector must support the maximum current of your solar panels.
• Application Type – Residential, commercial, or utility-scale installations require different models.
• Durability & Safety³ – Weatherproofing, locking mechanisms, and compliance with industry standards.
• Ease of Installation – Some models offer quick-connect features to reduce labor time.

How Do Different Stäubli MC4 Connector Models Compare in Performance?

To help you make an informed decision, here's a comparison of the key Stäubli MC4 connector models⁴ and their specifications.

Performance Comparison of MC4 Connectors

Model	Voltage Rating	Current Rating	Features
MC4 (1000V)	1000 V DC	Up to 39 A	Standard connector suitable for residential and small commercial PV applications.
MC4 (1500V)5	1500 V DC	Up to 40 A	Higher voltage capacity, ideal for large-scale installations where high efficiency is essential.
MC4-EVO26	1500 V DC	Up to 69 A	Designed for high-capacity installations, featuring enhanced current and voltage handling capabilities.
MC4-EVO2 Branch	1500 V DC	Up to 69 A	Branch connector that allows for the connection of multiple strings in high-voltage, high-current applications.
MC4-EVO2 Ready	1500 V DC	Up to 69 A	Pre-assembled version with integrated locking for enhanced security and faster installations.

Detailed Breakdown of MC4 Connector Models

MC4 (1000V)

• Voltage Rating: 1000 V DC
• Current Rating: Up to 39 A
• Best for: Residential and small commercial solar installations.
• Key Features: Standard locking system, UV-resistant, and IP68-rated for waterproof protection.

MC4 (1500V)

• Voltage Rating: 1500 V DC
• Current Rating: Up to 40 A
• Best for: Large-scale solar farms and commercial PV projects.
• Key Features: Increased voltage rating for higher efficiency and reduced transmission losses.

MC4-EVO2

• Voltage Rating: 1500 V DC
• Current Rating: Up to 69 A
• Best for: High-power solar systems requiring robust electrical connections.
• Key Features: Advanced insulation material, higher current carrying capacity, and improved locking mechanism.

MC4-EVO2 Branch

• Voltage Rating: 1500 V DC
• Current Rating: Up to 69 A
• Best for: Connecting multiple solar panel strings in large solar farms.
• Key Features: Simplifies parallel connections, reduces wiring complexity, and enhances safety.

MC4-EVO2 Ready

• Voltage Rating: 1500 V DC
• Current Rating: Up to 69 A
• Best for: Fast and secure installations in commercial and utility-scale projects.
• Key Features: Pre-assembled with factory-fitted safety locking, reducing installation time and risks.

What Is the Current Rating and Voltage Capacity of Stäubli MC4 Connectors?

Voltage and current ratings are critical for choosing the right MC4 connector. Using a connector with an insufficient rating may lead to overheating and system failure.

• 1000V MC4 connectors⁷: Typically used for smaller systems (residential or small commercial).
• 1500V MC4 connectors⁸: Preferred for large-scale installations where reducing energy loss is crucial.
• Current capacity⁹: MC4-EVO2 models support up to 69A, making them ideal for high-power systems.

How to Ensure Compatibility Between Stäubli MC4 Connectors and Solar Components?

To ensure seamless integration of MC4 connectors with your solar panels and inverters, consider the following:

• Check Voltage & Current Ratings: Match the connector specifications with your solar system.
• Use Compatible Cables: Ensure cable thickness and insulation match the MC4 connector specifications.
• Verify Manufacturer Authenticity: Use genuine Stäubli MC4 connectors¹⁰ to avoid counterfeit products.
• Inspect Mechanical Fit: Confirm proper locking to prevent loose connections and potential failures.

What Are the Common Mistakes to Avoid When Choosing a Stäubli MC4 Connector?

Many installers and solar system owners make mistakes when selecting MC4 connectors, leading to performance issues. Avoid these common pitfalls:

Mistake	Impact	Solution
Using mismatched connectors11	Causes poor connections, overheating, and power loss.	Always use compatible MC4 connectors from the same manufacturer.
Choosing the wrong voltage rating	Can result in system inefficiency or failure.	Select 1000V or 1500V based on your solar array’s requirements.
Ignoring current capacity12	Leads to overheating and potential fire risks.	Ensure the connector supports the maximum current of your system.
Not verifying authenticity	Counterfeit connectors may fail prematurely.	Buy from authorized distributors to ensure genuine Stäubli MC4 connectors.

Conclusion

Selecting the right Stäubli MC4 connector is essential for ensuring safe, efficient, and durable solar power connections. Whether you need a standard MC4 (1000V), high-voltage MC4 (1500V), or advanced MC4-EVO2 model, understanding their differences helps you optimize your solar system's performance.

By considering voltage, current capacity, compatibility, and installation requirements, you can make an informed decision and avoid costly mistakes in your solar project.
