O-Shaped MC4 Connectors: Why They Perform Better in Harsh Environments
If your solar installation is exposed to salty air, moisture, or high UV, it’s at risk.
O-shaped MC4 contacts are more reliable in harsh environments because they seal better, resist corrosion, and last longer than U-shaped ones.
When I work with industrial clients facing tough outdoor conditions, contact failure is always a risk. Choosing the right pin shape inside an MC4 connector can drastically change your system’s performance and reliability over time. Let’s explore what makes O-shaped contacts the better fit for harsh climates.
How Do O-Shaped Contacts Resist Moisture and Corrosion Better Than U-Shaped Ones?
Salt, rain, and humidity are the silent enemies of solar connectors.

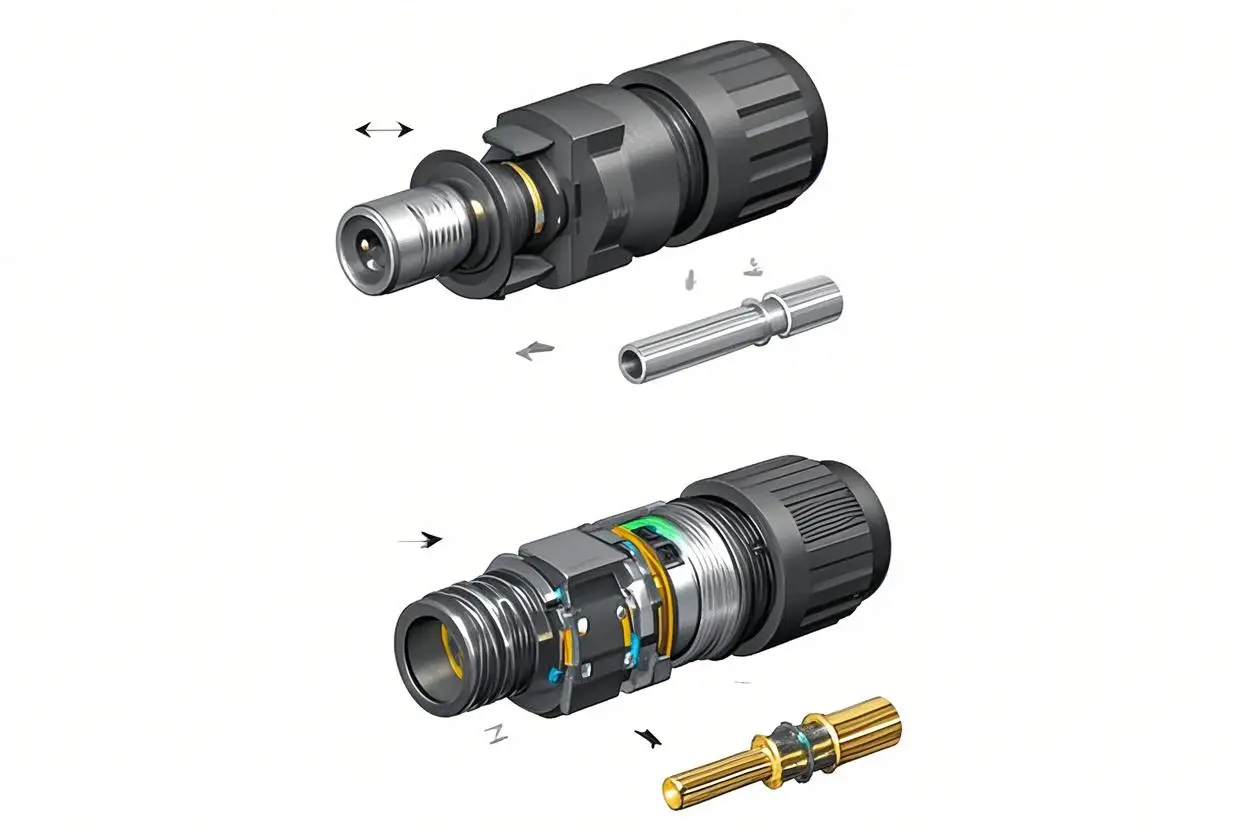

O-shaped contacts1 create a uniform 360-degree interface that helps block moisture intrusion2 and prevents corrosion3 better than U-shaped designs.
Why 360° Contact Pressure Matters
The circular geometry of O-shaped contacts ensures constant radial pressure between mating parts. This full-contact interface makes it harder for moisture, oxygen, and contaminants to reach the metal surfaces. In contrast, U-shaped terminals often press on just two or three points, allowing microgaps where air and moisture can creep in.
| Feature | O-Shaped Contact | U-Shaped Contact |
|---|---|---|
| Contact area | 360-degree ring | Limited surface contact |
| Moisture barrier | High | Moderate |
| Risk of corrosion | Lower | Higher due to microgaps |
| Sealing strength | Strong and even | Uneven and weaker |
Why Corrosion Is a Long-Term Risk
Once corrosion starts, it increases resistance. This leads to heat buildup, voltage drop, and in worst cases, electrical fire. I’ve seen cases where U-shaped contacts degraded after 3 years in coastal regions, while O-shaped ones remained intact.
O-shaped contacts give your MC4 connectors a fighting chance against environmental decay.
Are O-Type MC4 Connectors More Reliable in High UV and Salt-Mist Conditions?
Sun and salt push connectors to their limit—especially on rooftops and coastlines.
Yes, O-type MC4 contacts show greater resistance to UV degradation4 and salt-mist exposure, making them ideal for coastal, desert, and tropical climates.
What Happens Under UV Radiation?
MC4 connectors have external plastic shells, but internal parts aren’t immune to UV damage. UV light accelerates the aging of connector materials and can deform contact springs, especially on stamped metal U-shapes.
O-type contacts, typically CNC-machined and built with thicker, high-purity copper alloys, hold shape better over time. The 360-degree pressure design also keeps contact integrity even if slight material fatigue sets in.
Why Salt-Mist Resistance Matters
In a 96-hour salt spray test (IEC 60068-2-11), O-shaped contacts consistently showed less oxidation and better retention force than U-shaped alternatives. For installations near the ocean, that’s a big deal.
From rooftop systems in Sydney to remote island microgrids in the Philippines, we always recommend O-type pins for extreme exposure. They simply hold up better.
Do O-Shaped Contacts Reduce Power Loss in Outdoor Installations?
Every fraction of resistance eats into your solar system’s output.
O-shaped contacts reduce power loss5 by maintaining lower contact resistance6 over time, even under high humidity, dust, and thermal cycles.
How Contact Shape Affects Resistance
U-shaped contacts rely on spring tension at two or three points. Over time, dirt, heat, or stress can distort the metal and reduce contact pressure. This increases resistance and causes localized heating.
O-shaped contacts distribute current more evenly across a continuous surface. Even if part of the contact wears or oxidizes, the rest maintains the connection. That balance keeps power loss minimal.
| Performance Factor | O-Type Pin | U-Type Pin |
|---|---|---|
| Contact resistance (initial) | Very Low | Low |
| Resistance after 5 years | Stable | Rises significantly |
| Power loss impact | Minimal | Moderate to high |
I once had a client in Darwin who replaced dozens of MC4s because they didn’t realize the slight voltage drop was due to oxidized U-pins. When we switched to O-type, their output stabilized immediately.
Do O-Shaped MC4 Contacts Outlast U-Shaped in Harsh Environments?
Longevity equals fewer service calls—and lower cost per watt.
O-shaped MC4 contacts typically outlast U-shaped ones by 2–3x in high-heat, high-humidity, and polluted outdoor environments.
What Wears Out First?
In harsh climates, connectors face:
- Thermal cycling from day-night temperature swings
- Mechanical stress from vibration or movement
- Dust and chemical exposure (especially in industrial zones)
U-shaped contacts7 lose shape or contact force more quickly under repeated stress. Stäubli’s O-type pins, made from solid machined metal and featuring MULTILAM technology8, recover better and deform less under stress.
Outdoor Lifetime Comparison
| Installation Condition | Expected Lifetime: U-Type | Expected Lifetime: O-Type |
|---|---|---|
| Temperate, inland | 10–15 years | 20+ years |
| Coastal with salt air | 3–5 years | 10–15 years |
| Desert with high UV/dust | 6–8 years | 15+ years |
Even in mild conditions, the O-shaped advantage shows up. But in extreme cases, the performance gap is dramatic.
Are O-Shaped Contacts Worth the Extra Cost for Industrial Solar Projects?
Premium connectors aren’t cheap—but neither are downtime and fire risks.
Yes, the higher cost of O-shaped contacts is justified by lower maintenance9, higher energy yield10, and safer long-term operation in critical installations.
Cost vs Value in Real Projects
Let’s say an O-shaped MC4 connector costs $0.30 more per unit. For a 1MW system using 10,000 connectors, that’s a $3,000 premium. But if better contacts reduce failures, fire risks, and power loss even by 0.5%, the long-term savings and peace of mind are far greater.
In utility-scale farms, factories, and smart city solar projects, I always push for O-shaped terminals. The upfront cost fades when the system runs trouble-free for 20 years.
Where I Recommend O-Type Pins:
- Solar lighting systems near coastal roads
- Rooftop solar in tropical regions with heavy rain
- Industrial plants exposed to chemicals or soot
- Floating solar farms facing constant humidity
If reliability matters, O-shaped is the smarter call.
Conclusion
O-shaped contacts offer better protection, lower resistance, and longer life—especially in harsh environments where failure is costly.
-
