Description

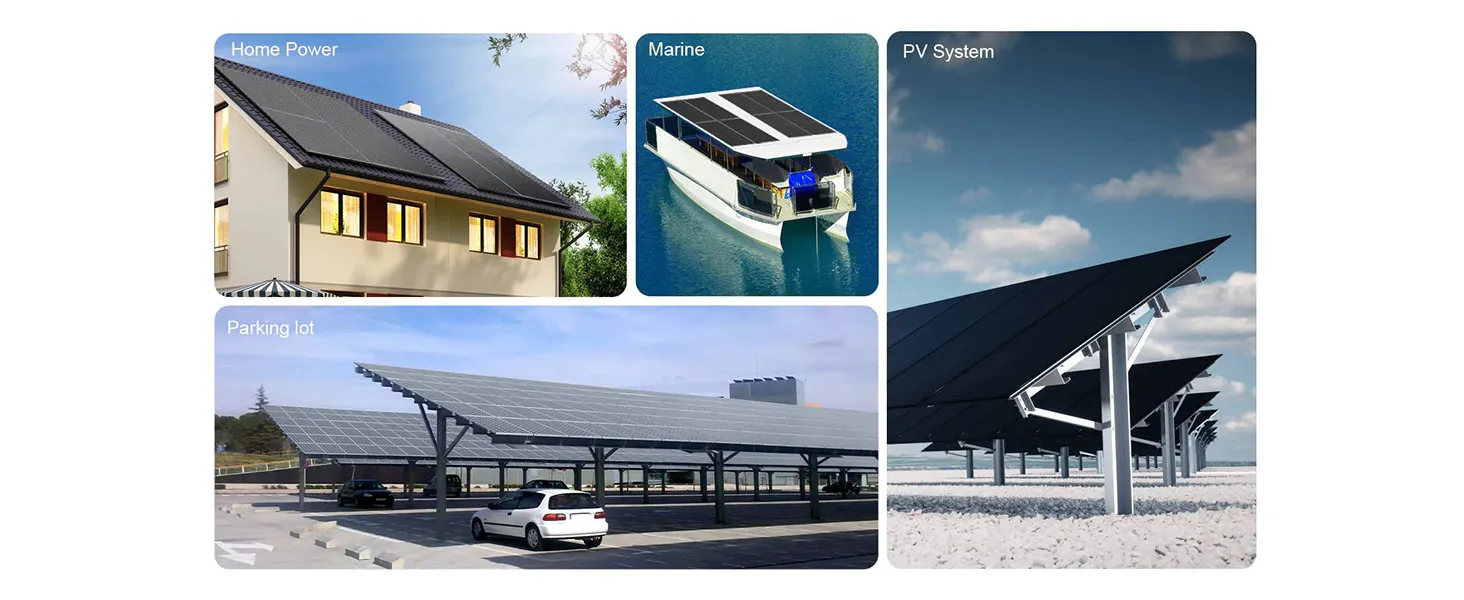

This 430w solar panel perfects for a variety of applications including off-grid, on-grid, and hybrid solar systems. Whether you're installing it on an RV, tiny house, marine vessel,or commercial building, this panel is ideal.

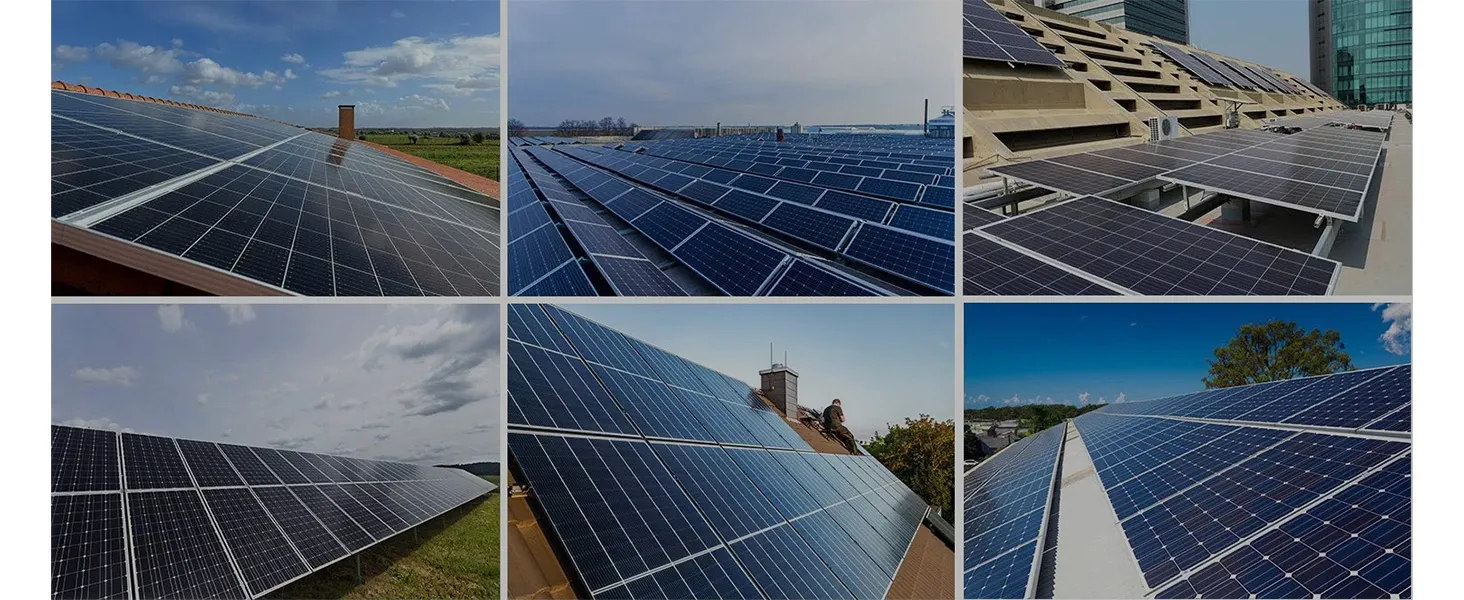

Raye Energy’s 430W Solar Panel is engineered to deliver optimal performance and durability. Whether for rooftop installations, water pumps, or outdoor applications, our solar panels are designed to last.

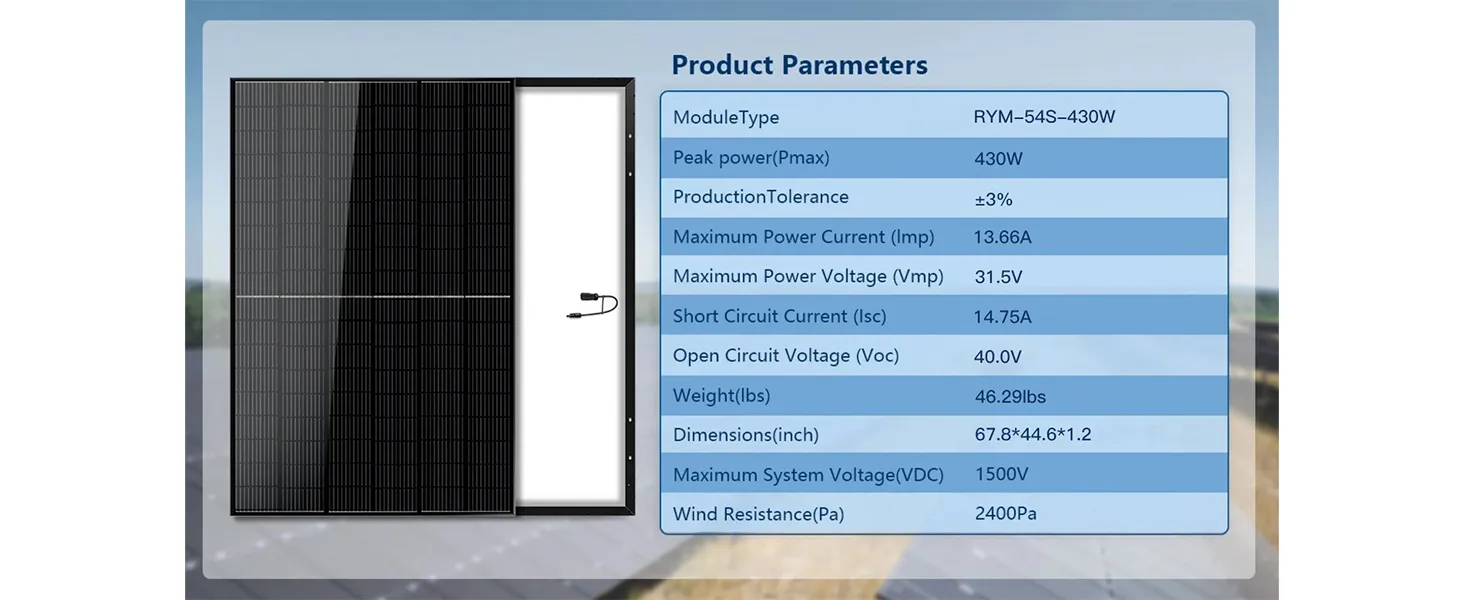

Specifications:
- Module Type: RYM-54S-430W
- Peak Power: 430W
- Production Tolearance: ±3%
- Maximum Power Current(Imp):13.66A
- Maximum Power Voltage(Vmp):31.5V
- Short Circuit Current(Isc):14.75A
- Open Circuit Voltage(Voc)：40.0V
- Weight: 21kgs
- Dimension: 1722 mm x 1134 mm x 30 mm
- Maximum Ststem Voltage(VDC):1500V
Designed to withstand harsh outdoor conditions, our panels offer superior performance, reliability, and longevity. Here's why they stand out:

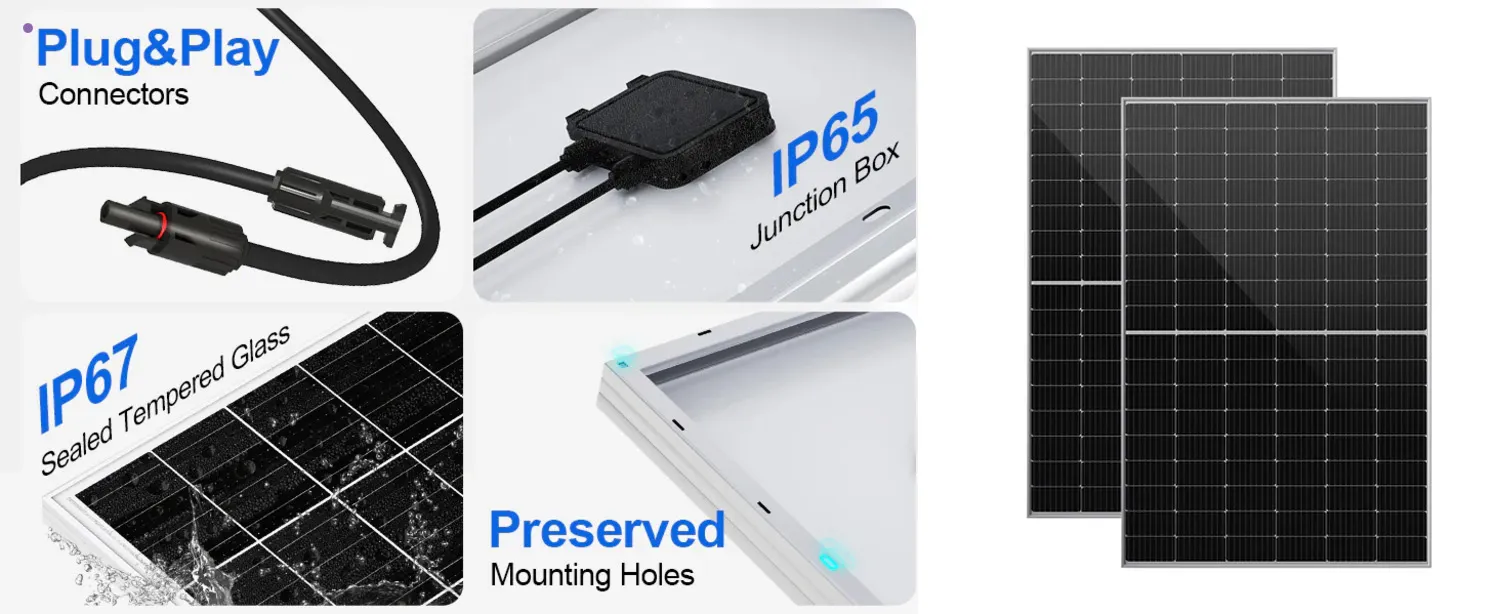

IP-67 Rated Junction Box, Durable Aluminum Frame and High-Strength Tempered Glass
Built to Withstand Harsh conditions
This panel is engineered to endure tough environmental conditions, withstanding snow loads of up to 5400 Pa and wind pressure of up to 2400pa. Therefore, sunGoldPower panels are built to provide long-lasting performance and durability, no matter the installation setting.
Small size arrangement is more flexible and has a wide range of application. Through big data analysis and actual layout design, the 430w installed capacity is higher in roof situations where more than 80% of the roof is designed.

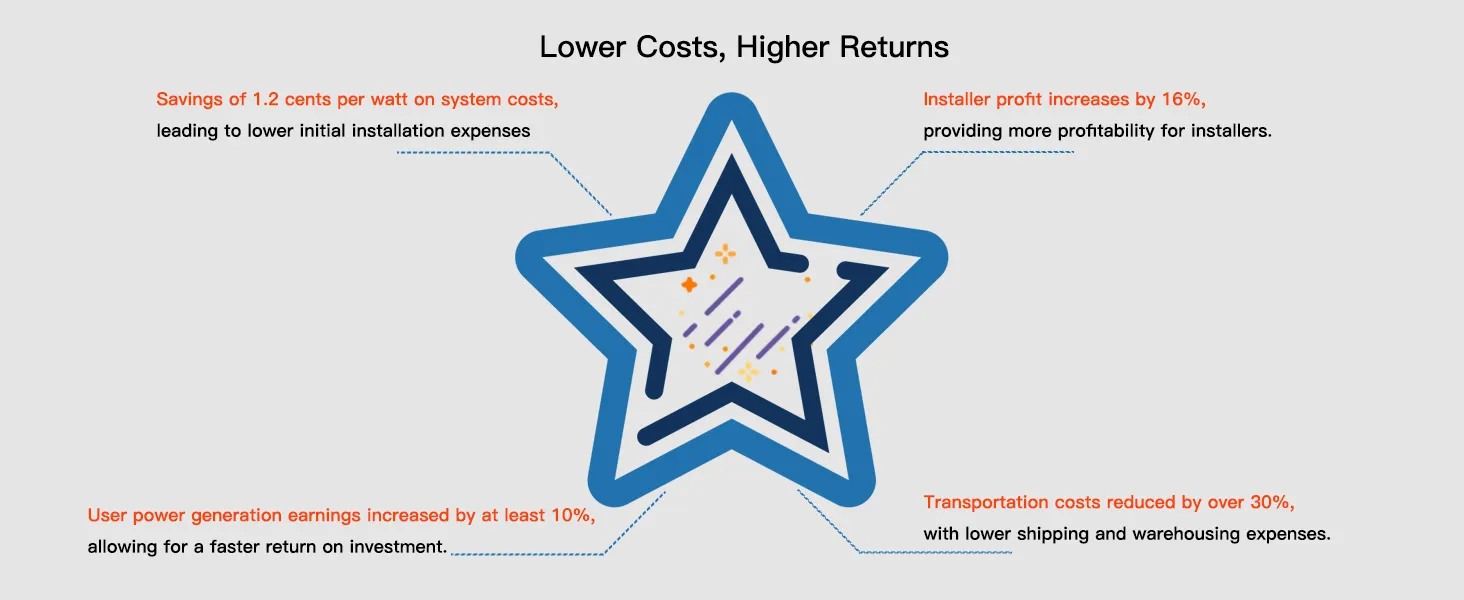

Lower Costs, Higher Returns
- Savings of 1.2 cents per watt on system costs, leading to lower initial installation expenses.
- Installer profit increases by 16%, providing more profitability for installers.
- User power generation earnings increased by at least 10%, allowing for a faster return on investment.
- Transportation costs reduced by over 30%, with lower shipping and warehousing expenses
We value your needs
Raye Energy will do our best to customize the components for your different needs and applications, so you can maintain a comfortable lifestyle while going green!
