Raye Energy Products FAQ All in One Place – The Ultimate Guide

Looking to source customized solar panels, connectors, and PV cables? This ultimate guide has everything you need to know about all products FAQ with Raye Energy!
Hi, I’m Zoe from Raye Energy. Let me guide you through this ultimate solutions page!
As the founder of Raye Energy, I bring over 10 years of experience in the solar energy industry. Click the button below to discover how we deliver exceptional solutions for customized solar panels, connectors, and PV cables to power your business success.
Get an Instant Quote Now

FAQs

Things you Need to Know about Solar Panel

Customized Solar Panels: These are tailored to meet specific requirements, such as size, shape, power output, or design. They can be customized for a particular installation space, whether it’s a roof with limited space or a unique structure like a vehicle or boat.

Regular Solar Panels: These come in standard sizes and power outputs, They are mass-produced and generally follow industry standards for efficiency, size, and performance.

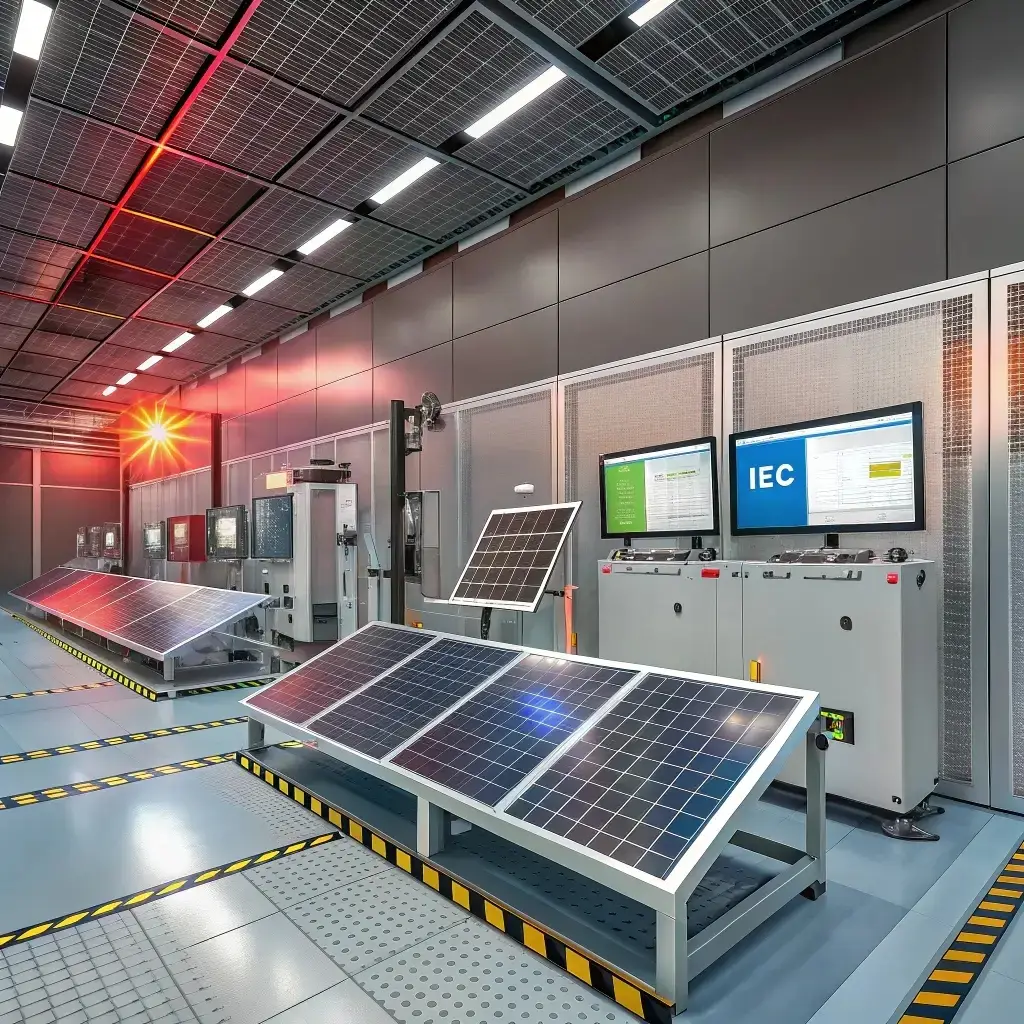

Yes, high-quality customized solar panels are built to the same standards as standard panels, ensuring they are durable, efficient, and reliable for long-term use. The materials used in the customization process are typically high-performance, designed to withstand weather conditions like rain, snow, and wind.

Solar panels convert sunlight into electricity using photovoltaic (PV) cells. These cells are made of semiconductor materials like silicon, which absorb photons (light particles) from the sun. This energy knocks electrons loose, creating an electric current that can be used to power electrical devices.

Most solar panels last between 25 and 30 years, with many still producing electricity beyond that time, although at a reduced capacity. They typically come with a 20-25 years warranty.

No, solar panels only generate electricity when exposed to sunlight. At night, you would rely on stored energy from batteries (if you have a storage system) or grid power.

A solar inverter is a device that converts the direct current (DC) electricity produced by the solar panels into alternating current (AC) electricity, which is what most household appliances use.

A battery is not strictly necessary, but it can be helpful. Solar panels produce power during the day, but you might need power at night or on cloudy days. A battery can store excess energy for later use, allowing you to be more self-sufficient.

Most roofs are suitable for solar panel installation, but factors like roof orientation, angle, and shading can affect performance. If your roof do not get enough sunlight or is in poor condition, you may need to consider alternatives like ground-mounted systems.

Solar panels are low maintenance. They only need occasional cleaning to remove dust, leaves, or other debris. Most systems also have monitoring software that helps track their performance.

While it is technically possible to install solar panels yourself, it’s usually not recommended unless you have expertise in electrical work and roofing. Professional installers can ensure the system is properly designed and connected, and they are typically familiar with local regulations and incentives.

Thin-film Solar Panels: These use thin layers of photovoltaic material (such as cadmium telluride, amorphous silicon, or copper indium gallium selenide) that are applied to a flexible backing. They tend to be lighter and thinner than traditional silicon-based solar panels.

Lightweight: Easier to transport and install, especially in applications where weight is a concern.

Flexible and Versatile: Can be bent to fit curved or irregular surfaces, making them ideal for unconventional installations.

Portable: Great for portable solar chargers, tents, or emergency setups.

Durability: Flexible panels are typically more resistant to breakage compared to rigid panels.

FAQs

Things you Need to Know about Stäubli PV Connector

Stäubli PV connectors, commonly referred to as MC4 connectors, are single-contact electrical connectors used for connecting solar panels. They ensure reliable, efficient, and durable electrical connections in photovoltaic systems.

High Durability: Resistant to UV, temperature changes, and weather conditions.

Efficiency: Low contact resistance for minimal power loss.

Safety: Snap-in locking system prevents unintentional disconnection.

Compatibility: Designed for various cable sizes and compatible with most PV modules.

High Voltage and Current Rating: Typically rated for up to 1500V DC and 30A, depending on the model.

Housing: Made of high-quality, weather-resistant plastic (e.g., PPO).

Contacts: Typically made of tinned copper to ensure excellent conductivity and corrosion resistance.

Stäubli connectors meet international standards such as:

IEC 62852/ UL 6703/ CSA standards

These certifications ensure compliance with global safety and performance requirements.

While they are designed to ensure compatibility with similar connectors, using mismatched brands can lead to safety risks and performance issues. It’s always recommended to use genuine Stäubli connectors for optimal performance.

  • Strip the cable insulation to the required length.
  • Crimp the contact pin onto the cable using an appropriate crimping tool.
  • Insert the crimped pin into the connector housing until it locks.
  • Verify the connection is secure.

A dedicated unlock tool is typically required to disengage the snap-in locking mechanism safely.

Stäubli connectors are designed to last for over 25 years under standard operating conditions. Their durability ensures long-term performance in PV installations.

FAQs

Things you Need to Know about PV Connector

A PV connector is a specialized electrical connector used in photovoltaic systems to connect solar panels to inverters, batteries, and other components. These connectors ensure secure, reliable electrical connections while also providing protection against environmental factors like moisture, dust, and UV radiation.

  • UV resistance
  • Waterproof and dustproof (often rated IP67 or higher)
  • High current-carrying capacity
  • Ease of installation and connection
  • Secure locking mechanisms

MC4 connectors are popular due to this:

Ease of use: They are easy to connect and disconnect.

Weatherproof design: They are resistant to harsh outdoor conditions like UV exposure and moisture.

Compatibility: They are standardized, making them widely compatible with most solar panels and equipment.

Safety: MC4 connectors have locking mechanisms that prevent accidental disconnections.

  • Provide long-term durability and reliability.
  • Minimize risks of electrical failure, which can reduce maintenance costs.
  • Enhance the performance and longevity of a solar power system.

While some connectors from different brands may physically fit together, it is not recommended due to potential differences in material quality, locking mechanisms, or electrical standards. Always check compatibility to ensure safety and reliability.

Most PV connectors are rated for:

Current: 30A to 50A

Voltage: Up to 1000V or 1500V DC, depending on the model.

Electrical Losses: Low-quality connectors might have higher resistance, leading to increased energy loss, reducing the overall efficiency of the solar system.

Overheating: Connectors that are poorly designed or made with inferior materials can overheat due to poor electrical contact or resistance, potentially leading to melting or burning, which could damage the wiring or components.

Corrosion: Poor-quality connectors may not be properly sealed, allowing moisture or contaminants to enter. Over time, this can lead to corrosion of the contacts, which can cause intermittent connections or complete failure of the circuit.

Connection Issues: A bad connector may not provide a secure, reliable connection, leading to intermittent power loss, voltage fluctuations, or complete system failure.

Reduced Lifespan: The solar system’s lifespan can be shortened if low-quality connectors lead to system faults or degradation of other components, such as the inverter or battery storage system.

FAQs

Things you Need to Know about PV Cable

A PV cable, also known as a photovoltaic cable, is a specialized electrical cable used in solar power systems to connect solar panels to other system components, such as inverters, batteries, charge controllers, and electrical components. It plays a crucial role in the efficient and safe transmission of electricity generated by the solar panels. PV cables are engineered to withstand the unique demands of solar installations, such as exposure to sunlight, extreme temperatures, and environmental factors.

When it comes to solar power systems. Here are the different types of PV cables commonly used:

Single-Core PV Cables: These cables have a single conductor, typically made of copper or aluminum, surrounded by insulation and an outer sheath. They are commonly used for smaller-scale solar installations.

Twin-Core PV Cables: Twin-core cables consist of two insulated conductors within a single cable jacket. They are used for connecting solar panels in parallel, allowing for the collection of higher current.

Solar PV Extension Cables: Extension cables are used to extend the reach of PV cables when additional length is required between solar panels and other system components. They are available in various lengths and connector types.

When selecting a PV cable, it’s important to consider factors such as the required current carrying capacity, voltage rating, and compliance with industry standards. Choosing the appropriate type of PV cable ensures safe and reliable transmission of solar power within the photovoltaic system.

PV cables differ from regular electrical cables in several ways. PV cables are specifically designed for solar applications and have unique features to withstand the environmental conditions encountered in solar installations. They are typically UV-resistant, able to handle extreme temperatures, and resistant to moisture and weather conditions.

Key characteristics of a high-quality PV cable include:

  • Compliance with industry standards and certifications, such as TUV or UL.
  • UV resistance and weather resistance for prolonged outdoor use.
  • High-temperature resistance to handle the heat generated in solar installations.
  • Low smoke and zero halogen (LSZH) properties for enhanced safety in case of fire.
  • Good flexibility and durability to withstand installation and environmental stress.
  • Adequate insulation thickness and high-quality insulation materials to prevent electrical faults.
  • Resistance to moisture, abrasion, and chemical exposure.

Yes, the size of the cable is important as it can affect the performance of the entire solar panel system. You might experience severe drops in voltage across wires if you use an undersized cable. This might result in power loss.

PV cables are designed with sustainability in mind and are generally recyclable and environmentally friendly.

PV cables that carry certifications or labels indicating their environmental credentials. These certifications, such as ISO 14001 (Environmental Management System) or RoHS (Restriction of Hazardous Substances), demonstrate a commitment to environmental stewardship and compliance with specific environmental standards.

PV cables are designed to be compatible with different types of solar panels and inverters. They typically feature standardized connectors, such as MC4 or Amphenol connectors, which are widely used in the solar industry.

Yes, PV wire can typically be run in conduit. In fact, it is often recommended to use conduit for PV wire installations to provide additional protection for the wiring system. Running PV wire through conduit helps safeguard the wires from physical damage, moisture, and other environmental factors, ensuring the safety and longevity of the solar power system.

Yes, PV cables are typically UV-resistant and suitable for outdoor use. They are designed to withstand prolonged exposure to sunlight and resist damage caused by UV radiation.

There is a major difference between cables and wires. While a solar wire uses a single conductor to transport electricity, a cable contains multiple conductors within an insulation jacket

FAQs

Things you Need to Know about Battery Harness

A battery harness is a system of wires, connectors, and terminals designed to connect a battery to electrical components in vehicles, machinery, or devices. It ensures proper power transfer, safe connections, and is typically used in automotive, RV, solar power, and industrial applications.

Battery harnesses are generally made of high-quality copper wires (for conductivity), durable insulation materials (such as PVC, XLPE, or rubber), and corrosion-resistant terminals (such as brass or tinned copper).

The installation process involves connecting the positive and negative terminals of the battery to the corresponding connections on the device or vehicle. It’s essential to ensure proper polarity (positive to positive, negative to negative) and secure connections to prevent loose wiring or short circuits. It’s also recommended to use appropriate tools (wrenches, crimpers, etc.) and follow the manufacturer’s instructions.

Battery harnesses are designed for specific types of batteries (e.g., lead-acid, lithium-ion, etc.). It’s important to select a harness that matches the battery’s voltage and amperage requirements. Always check the specifications to ensure compatibility.

A standard battery harness is typically designed for light-duty applications, while a heavy-duty harness is built for higher currents, demanding environments, and larger battery systems (like those used in trucks, buses, or industrial machinery). Heavy-duty harnesses use thicker wires and more robust connectors to handle higher power loads.

  • Inspect regularly: Look for signs of wear, corrosion, or damage to wires and connectors.
  • Keep terminals clean: Use a wire brush and a cleaning solution to remove any corrosion on terminals.
  • Tighten connections: Ensure all connections are snug and free of oxidation.
  • Avoid overloading: Do not exceed the specified current rating for the harness.

Minor damage (such as a frayed wire) can be repaired by cutting and replacing the affected section. However, if the damage is extensive or involves the connectors or insulation, it’s better to replace the harness entirely to ensure safety.

When selecting a battery harness, consider the following factors:

  • Voltage and amperage ratings: Match the harness to your battery’s output.
  • Length of wire: Choose a harness with appropriate wire length for your setup.
  • Environmental conditions: If the harness will be exposed to extreme temperatures, chemicals, or moisture, choose one with durable, resistant materials.

Fuses and circuit breakers are important safety features in a battery harness. They protect the wiring and connected components by interrupting the circuit in the event of a short circuit, overload, or other electrical fault, preventing potential damage or fire hazards.

Yes, battery harnesses are tailored for various applications, such as:

  • Automotive battery harnesses for cars and trucks.
  • RV battery harnesses for recreational vehicles.
  • Solar battery harnesses for solar energy systems.
  • Industrial battery harnesses for machinery and heavy equipment.
  • Marine battery harnesses for boats and marine applications.

FAQs

Things you Need to Know about PV Optimizer

A PV optimizer is an electronic device that is attached to individual solar panels to enhance their performance. It ensures each solar panel operates at its maximum power point (MPPT), which can help mitigate the effects of shading, dirt, or other issues that might affect the performance of one or more panels in a solar array.

A PV optimizer works by continuously tracking the maximum power point of each individual panel in a solar array. When the solar panel’s voltage and current deviate from the optimal operating point due to shading or panel mismatch, the optimizer adjusts the panel’s voltage and current to maximize energy harvest.

  • Performance in partial shading: Optimizers are beneficial in environments where shading from trees, buildings, or other obstructions can affect solar panel performance.
  • Module mismatch: If panels in a system are of different types, ages, or efficiencies, optimizers can ensure each one works at its highest potential.
  • PV Optimizer: A PV optimizer is attached to each solar panel to maximize its power output and sends the optimized DC electricity to a central inverter.
  • Microinverter: A microinverter is installed on each panel as well, but it converts the DC electricity directly to AC electricity at the panel level, eliminating the need for a central inverter.

Many optimizers come with a monitoring system that can connect to a mobile app or web portal, allowing you to track the performance of each individual panel in real-time. This is especially useful for identifying problems or inefficiencies early on.

Yes, PV optimizers can be used in off-grid systems, though their usefulness may be less than in grid-tied systems, as off-grid systems typically operate in a less complex environment with fewer shading or mismatched panel issues.

Installation of PV optimizers typically requires a professional solar installer, as it involves working with high-voltage electrical components. It is not recommended for DIY installation unless you have the appropriate knowledge and experience.

While not required for all installations, PV optimizers can be highly beneficial in systems where:

  • There is partial shading.
  • The panels are installed in different orientations or tilt angles.
  • The system has mismatched panels (in type, age, or efficiency).
  • You want to monitor the performance of each panel individually.

Yes, PV optimizers can increase the efficiency of your solar system by minimizing losses due to shading, panel mismatch, or other environmental factors. The overall increase in energy harvest will depend on the specific conditions of your installation.

Yes, you can retrofit a solar system with optimizers, provided the system is compatible. This typically requires installing the optimizers on the existing solar panels and connecting them to the inverter.

Yes, PV optimizers are an added cost on top of the basic solar installation. However, the increased energy output, improved system monitoring, and additional safety features often make them a cost-effective option in the long term, especially for systems with shading or mismatched panels.

Generally, yes. Most PV optimizers are compatible with a wide range of solar panel brands and models. However, it is always a good idea to verify compatibility with the manufacturer or installer before installation.

When choosing a PV optimizer, consider:

  • The type of solar system (grid-tied, hybrid, off-grid)
  • Panel characteristics (size, voltage, and model)
  • Shading conditions (partial or full shading)
  • Monitoring needs (individual panel monitoring or just system-level monitoring)
  • Budget (initial cost vs. long-term benefits)

It’s best to consult with your installer or a solar professional to choose the best optimizer for your system.

While optimizers themselves don’t directly increase the lifespan of your panels, they can help reduce the wear and tear caused by shading or mismatch between panels. By ensuring each panel operates efficiently, they may contribute to the overall longevity of the system.
