What’s the Difference Between U-Shaped and O-Shaped Pins in Stäubli PV Connectors?

Some installers think all MC4 pins are the same. But choosing between U-shaped and O-shaped pins can directly affect system reliability and safety.

Stäubli’s MC4 connectors use two main pin shapes—U and O. Both work with MULTILAM, but each has distinct advantages for different environments and current loads.

Every decision in a PV system counts. In this post, I’ll show how these pin shapes work, how they impact your connections, and which one to choose depending on your project type.

What Are U-Shaped and O-Shaped Pins in Stäubli MC4 Connectors?

Some people crimp blindly—never noticing the shape of the pin inside. That’s a mistake.

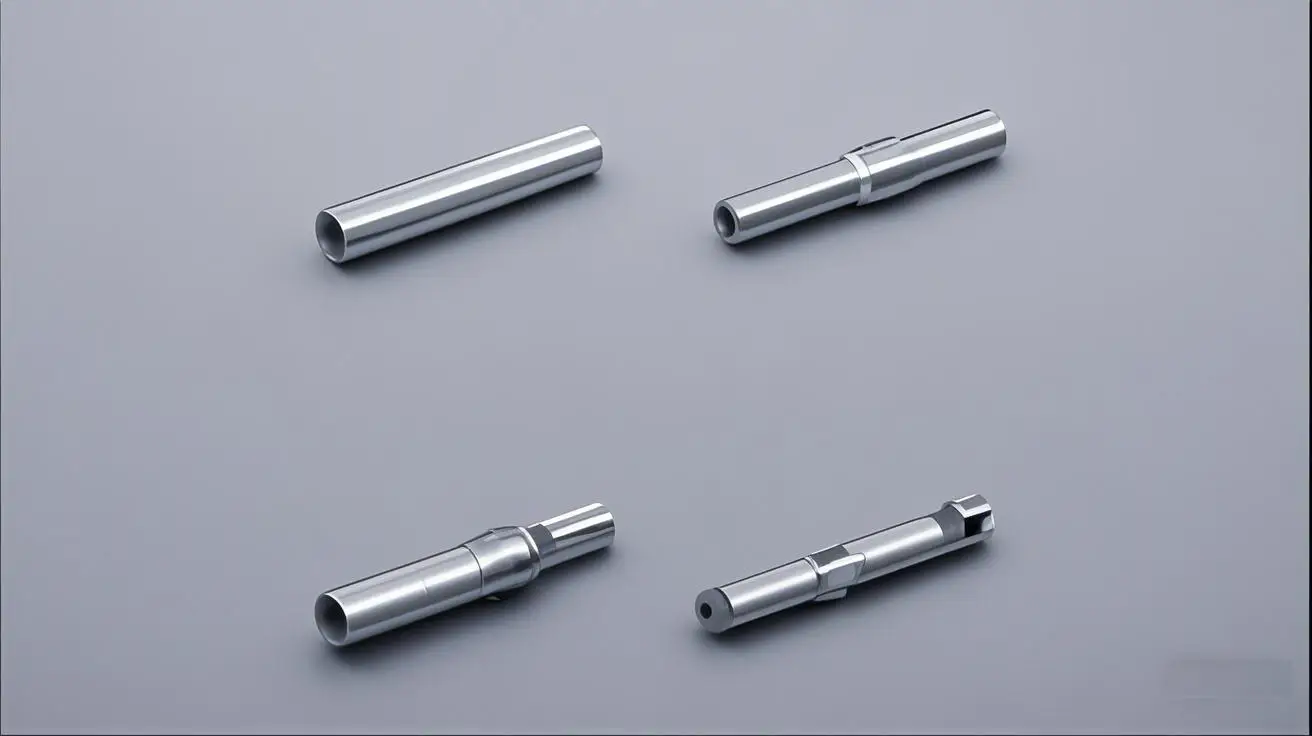

U-shaped pins¹ are typical in field-assembled connectors, while O-shaped pins² are often found in factory-assembled ones.

Key Differences Between the Two:

Feature	U-Shaped Pin	O-Shaped Pin
Shape Before Crimp	U profile (open barrel)	O profile (closed barrel)
Installation Method	Hand crimping in the field	Usually pre-crimped in factory
Common Use Case	Installer-assembled MC4s	Pre-assembled cable harnesses
Tolerance to Handling	More forgiving	Requires precise stripping + insertion
Contact Consistency	Medium to High (depends on crimping)	High (machine precision)

I often recommend U-pins for field crews that need flexibility, but O-pins where consistency and tight tolerances matter more—like on utility-scale sites.

How Does Multilam Contact Technology Work in Both Pin Types?

Most people don’t realize: the pin isn’t the only part responsible for conductivity.

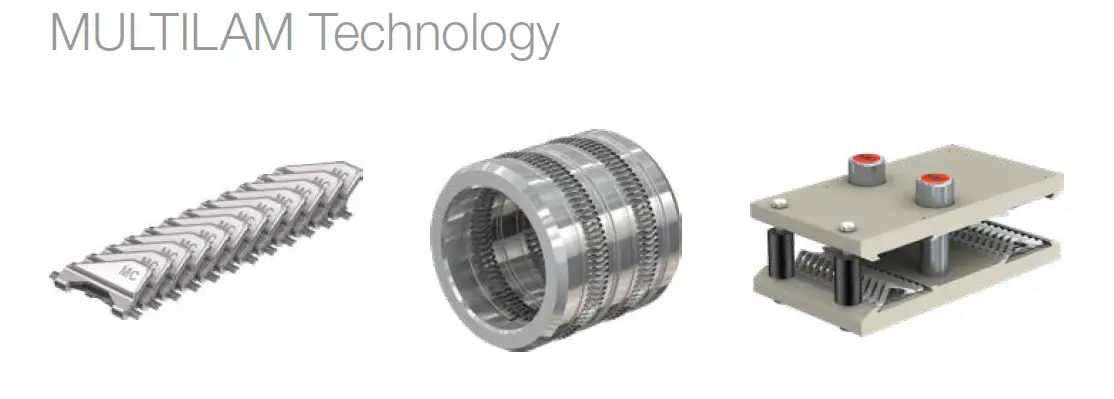

Stäubli’s MULTILAM contact band³ creates multiple spring-loaded contact points, which remain constant across both U and O designs.

Here's why MULTILAM matters:

• It maintains low contact resistance⁴—even under heat and vibration.
• It compensates for minor misalignments in insertion force.
• It sustains performance through thousands of connect/disconnect cycles.

Even though the pin shapes differ, MULTILAM ensures both deliver reliable power transfer⁵. But O-pins have one slight edge when it comes to precision…

Which Pin Shape Offers Better Contact Stability for High-Current PV Systems?

As current rises, every bit of contact surface and crimp integrity⁶ becomes critical.

O-shaped pins typically outperform U-shaped ones in high-current environments due to their uniform closed profile and factory-controlled crimping.

Why O-pins are better under load:

• Their 360° symmetry creates more uniform pressure on the contact band.
• There’s less chance of mechanical deformation under thermal stress.
• Factory pre-crimped designs eliminate human error.

U-pins are still reliable—but only if crimped properly. In high-current or utility-scale projects, I always recommend going with factory-O pins to avoid hot spots and long-term degradation.

Do O-Shaped Pins Last Longer Than U-Shaped Pins in Harsh Conditions?

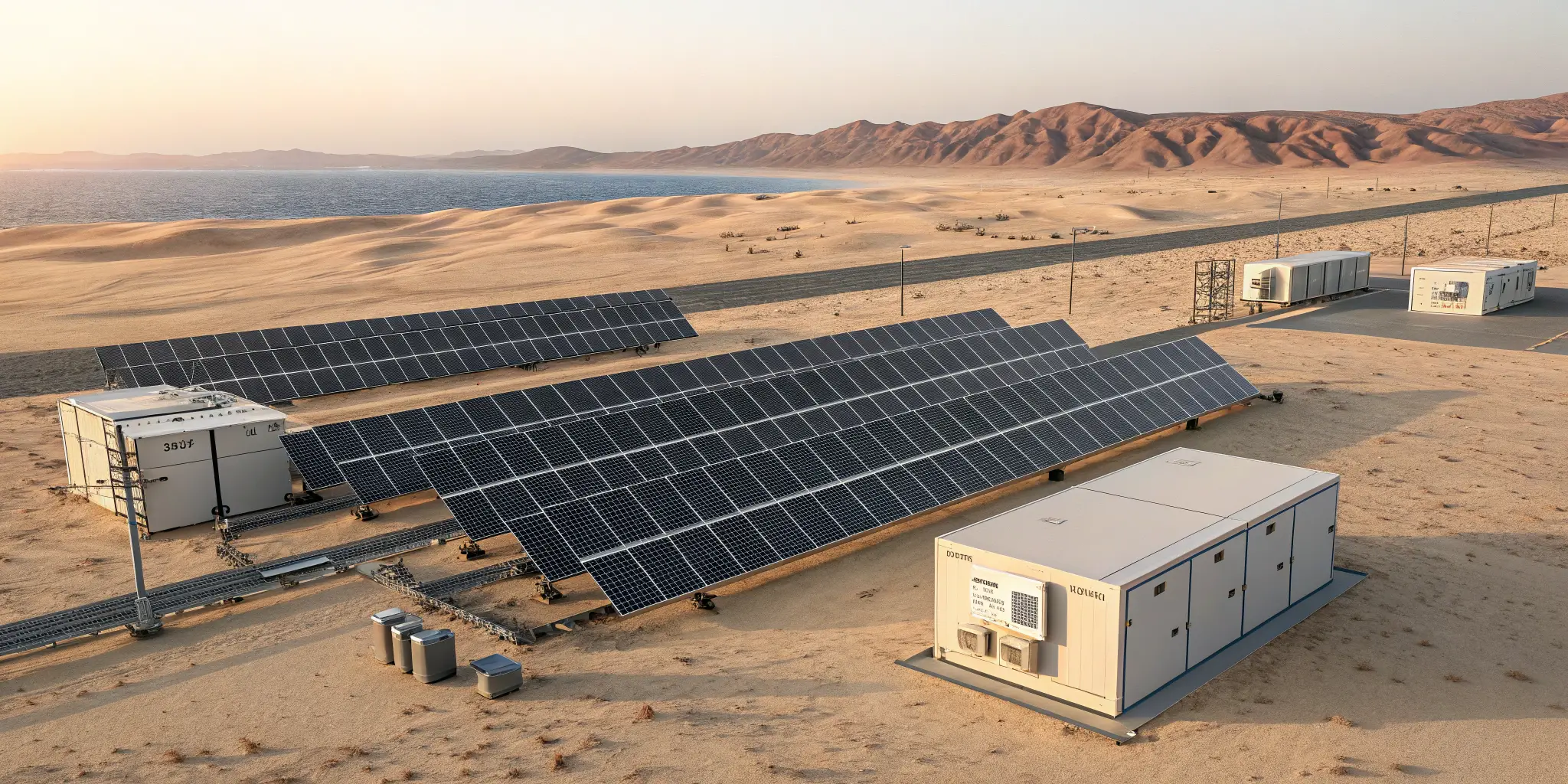

Salt, dust, and temperature swings take a toll on MC4 connections⁷. And not all pin designs hold up the same.

Yes, O-shaped pins generally offer better environmental sealing and mechanical longevity than U-shaped ones.

Key reasons for longer lifespan:

• The O-shape is less exposed to contaminants.
• Fully enclosed crimps prevent moisture from entering the contact zone.
• Their circular symmetry reduces mechanical stress points over time.

That said, you can still achieve long lifespan with U-pins—if your crimp is done perfectly and you use the correct strain relief and sealing techniques.

Can You Mix U-Shaped and O-Shaped Pins in the Same PV System Safely?

Installers sometimes ask: "Can I use U-pins on one end and O-pins on the other?"

No. Mixing pin types—especially from different manufacturers—can compromise contact alignment⁸, safety, and warranty.

Why you should never mix pin types:

• They might not align perfectly with the MULTILAM band, causing loose contact.
• Mixed resistance across connections can create heat points and arc risk.
• Stäubli—and most tier-1 module OEMs—require consistent mating types for certification and warranty.

If you're field-crimping, stay consistent with U-pins. If you’re using preassembled harnesses, go full O-pin. Mixing is not worth the risk.

Conclusion

Choosing between U- and O-shaped MC4 pins is more than just a technicality—it’s a critical step for long-term reliability. Match your pin type to the application, and don’t mix to stay safe.
